GAC AION Y Plus 490
| Manufacturer | GAC Aion |
| Level | Passenger Vehicle |
| Energy Type | Pure Electric |
| Body Structure | 5-Door Electric Crossover SUV · FWD · Single Motor |
| Length × Width × Height | 4535×1870×1650 mm |
| NEDC Pure Electric Range | 490 km (CLTC) |
| Battery Fast Charge Time | 0.5h (30–80%, DC) |
| Battery Fast Charging Range | 30–80% |
| Battery Slow Charge Time | 8h (AC) |
| Rear Door Opening Method | Swing door |
| Maximum Power | 150 kW / 201 hp |
| Maximum Torque | 255 N·m |
| Gearbox | Single-speed Reduction Gear |
| Engine | Single Permanent Magnet Synchronous Motor |
| Top Speed | 150 km/h |
| 0–100 km/h | 8.5s |
| Curb Weight | 1700 kg (est.) |
| Seats | 5 |
The GAC AION Y Plus is a practical, family-focused electric crossover built on GAC Aion's dedicated EV platform. A 63.2 kWh LFP battery (GAC's Magazine Battery technology, prized for thermal stability) delivers up to 490 km of range, while the 150 kW front motor produces 201 hp and 255 N·m of instant torque.

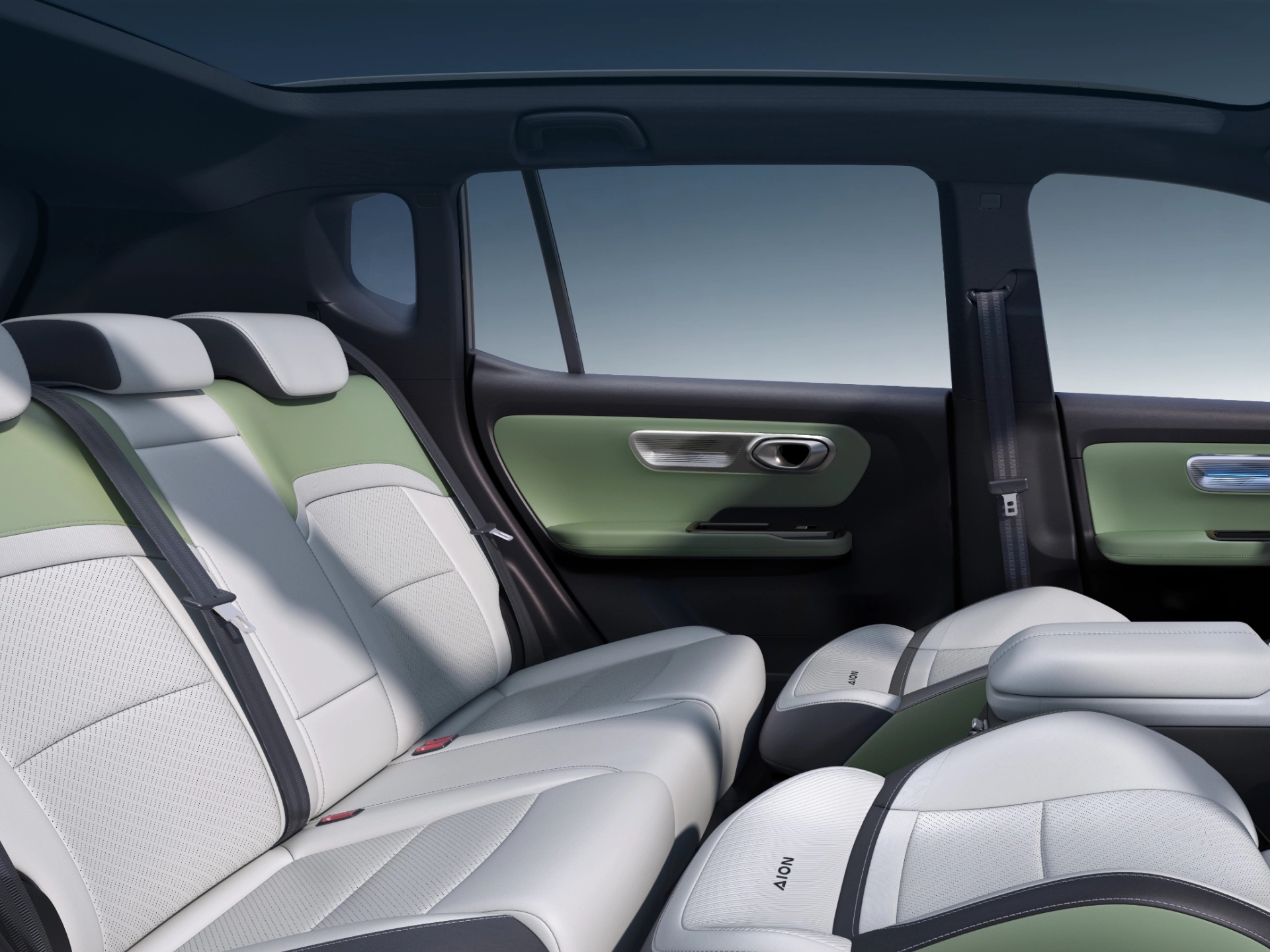

DC fast charging via CCS Combo takes the battery from 30–80% in around 30 minutes, with a full AC charge in about 8 hours. Inside, the Y Plus prioritises rear-seat space and everyday usability over flash, with a clean dashboard, large touchscreen infotainment, and a full suite of driver-assistance and connected-car features.
| Manufacturer | GAC Aion | Level | Compact Crossover SUV |
| Energy Type | Pure Electric | Body Structure | 5-door SUV |
| CLTC Range | 490 km | Battery Capacity | 63.2 kWh |
| Max Power | 150 kW / 201 hp | Max Torque | 255 N·m |
| 0–100 km/h | 8.5s | Top Speed | 150 km/h |
| Length × Width × Height | 4535×1870×1650 mm | Wheelbase | 2750 mm |
| Seats | 5 |
| Motor Type | Permanent Magnet Synchronous | Motor Layout | Front |
| Max Power | 150 kW / 201 hp | Max Torque | 255 N·m |
| Gearbox | Single-speed Reduction | Drive Type | FWD |
| Battery Type | Magazine Battery (LFP) | Battery Capacity | 63.2 kWh |
| DC Fast Charge | 30–80% in ~30 min | AC Slow Charge | ~8h (full charge) |
| CLTC Range | 490 km | Charging Port | CCS Combo / Type 2 |
| Battery Warranty | 8 years / 200,000 km |
| Front Suspension | MacPherson Strut | Rear Suspension | Torsion Beam |
| Front Brake | Ventilated Disc | Rear Brake | Disc |
| Parking Brake | Electronic EPB |
| Length | 4535 mm |
| Width | 1870 mm |
| Height | 1650 mm |
| Wheelbase | 2750 mm |
| Curb Weight | 1700 kg (est.) |
