HOME › PRODUCTS › Pickup Truck › Foton Tunland V7 Mars V7 Long Wheelbase Double Cab Pickup Truck 2.0T Diesel 163HP Automatic 4 Wheel Drive

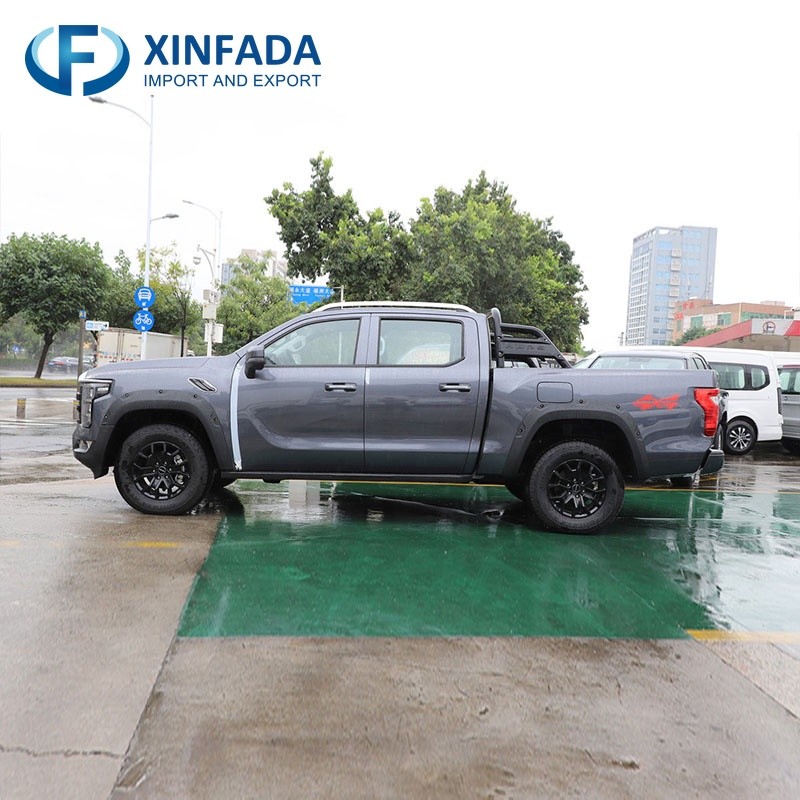

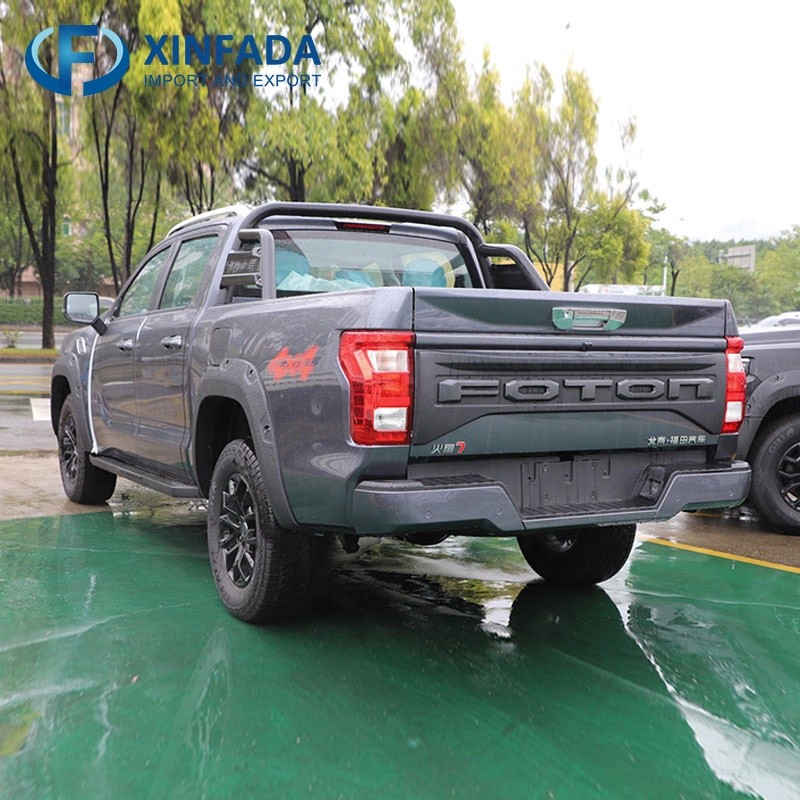

Foton Tunland V7 Mars V7 Long Wheelbase Double Cab Pickup Truck 2.0T Diesel 163HP Automatic 4 Wheel Drive
Pickup Truck
Diesel
Engine
Beiqi Foton 4F20TC17
Max Torque
415N·m
Drive Type
4WD / AWD
Top Speed
160km/h
Seats
5
Basic Information
| Level | Pickup Truck |
| Energy Type | Diesel |
| Body Structure | 5-Seat · 4WD |
| Maximum Torque | 415N·m |
| Engine | Beiqi Foton 4F20TC17 |
| Top Speed | 160km/h |
| Seats | 5 |
Drive Form：Four-wheel driveShifting Mode：AT AutomaticMaximum Horsepower：163Displacement：2LFuel Types：Diesel fuel
Basic Information
| Announcement Model | BJ1037V2MAV-8H | Drive form | Four-wheel drive |
| Wheelbase | 3505mm | Front track/rear track | 1700/1700mm |
| Vehicle length | 5.797m | Vehicle width | 2.09m |
| Vehicle height | 1.91m | Front/Rear Suspension | 1/1.262m |
| Total vehicle weight | 2.3 tons | Total mass | 3.055 tons |
| Rated load | 0.43 tons | Approach angle/Departure angle | 27/22 degrees (°) |
| Top speed | 160km/h | Energy type | Diesel fuel |
Engine parameters
| Engine Model | Beiqi Foton 4F20TC17 | Maximum horsepower | 163 horsepower |
| Maximum output power | 120kW | Number of cylinders | 4-cylinder |
| Fuel types | Diesel fuel | Cylinder arrangement | Inline |
| Displacement | 2L | Maximum torque | 415N·m |
| Maximum torque speed | 1500-2400rpm |
Transmission parameters
| Gearbox model | 8-speed automatic transmission | Number of gears | 8 gears |
| Shifting mode | AT Automatic |
Cargo box parameters
| Cargo box form | Parapet | Cargo box length | 1.757m |
| Cargo box width | 1.65m | Cargo box height | 0.53m |
Cab parameters
| Number of rows of seats | Double row |
Chassis parameters
| Front axle suspension | Double wishbone independent suspension | Rear axle suspension | Leaf spring non-independent suspension |
Wheel Braking
| Front brake type | Disc | Rear brake type | Disc |
| Front wheel specifications | 265/70R18 | Rear wheel specifications | 265/70R18 |
| Wheelbase | 3505mm |
